How to move multiple components under 1 component to simplify layout

Component Modeling
1

I have a pallet with a bunch of components to indicate raw material feed in the layout.

However, the amount of CAD data is making the layout heavy.

How can I move all these separate components under one component and simplify the geometry? These parts are just illustrative.

Cannot find the right tools under Modeling.

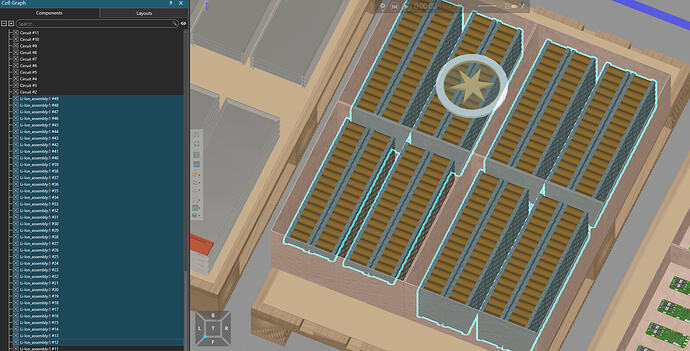

image1920×977 510 KB

Thanks!

2

Here’s a helper addon for cases like this: Merge Components - Extensions and Python Add-ons - Visual Components - The Simulation Community

2 Likes
3

Thanks, that’s a nice addon.

Although 1/3 of the times it seems to completely delete part of the components and other 1/3 it creates the component, but all materials get overwritten :wink: Sometimes it does work nicely though.

image1265×1285 345 KB

To simplify I found another solution where I went back to each raw material component and collapsed, cilindrified them, then recreated the pattern.
