Hi, I have created an assembly using imported geometry from a Cad file, a puck and a vial that goes in it to be moved on a conveyor. on the assembly editor the assembly is perfect, but when I create the assembled part from a feeder the two components are way appart

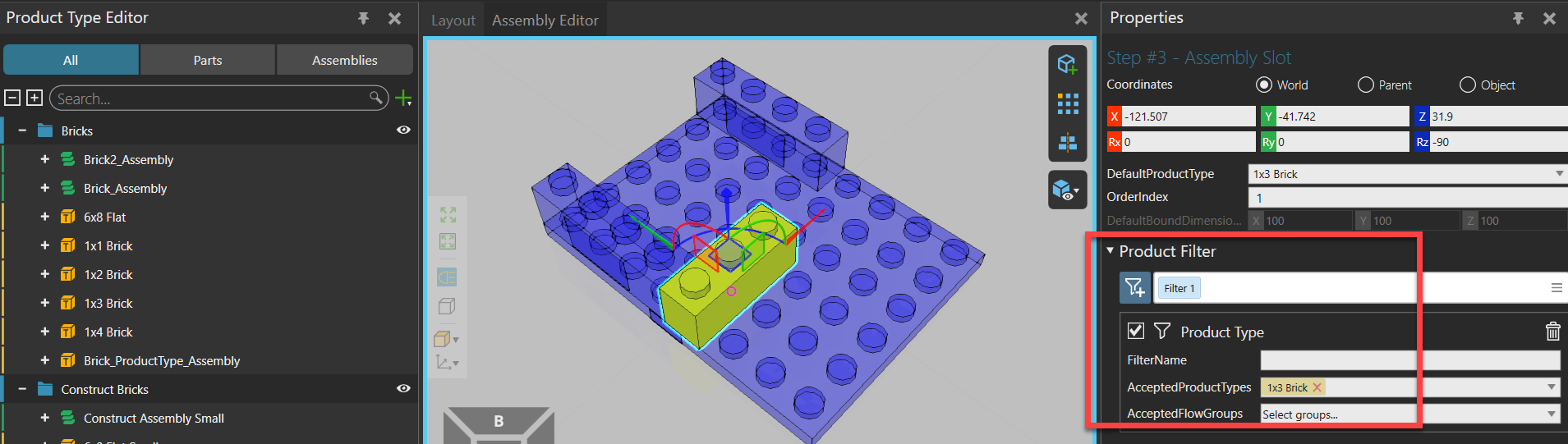

Hi, did you add a Product Filter for each slot of your assembly?
The ProductFilter allows you to define which product or products are allowed to be placed there. If you have several parts of the Assembly coming in in the same process and didn’t define a filter, it will accept any product available at the position defined by the slot.
In your case, it might be that the products were placed on the wrong “slot” because there is no filter.
Hi,

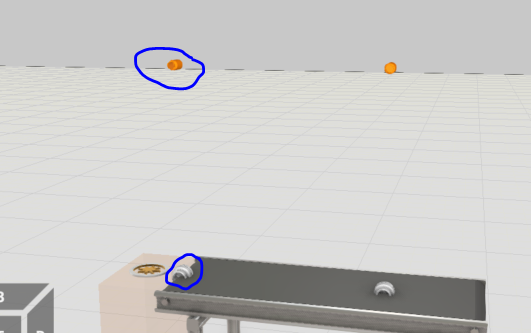

Even with the filter to accept only the assembled part, the second one show with a big offset like this

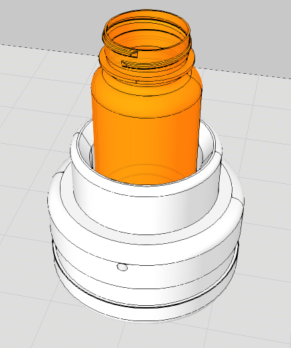

while my assembly looks like this
and they are also on the wrong orientation
