Interaction between AMR and Door

General Questions
1

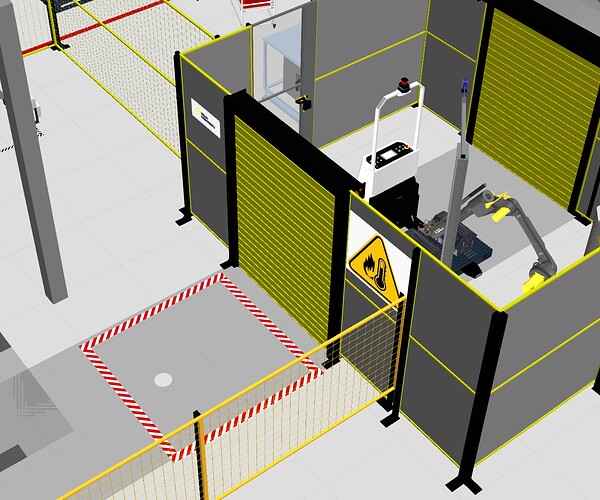

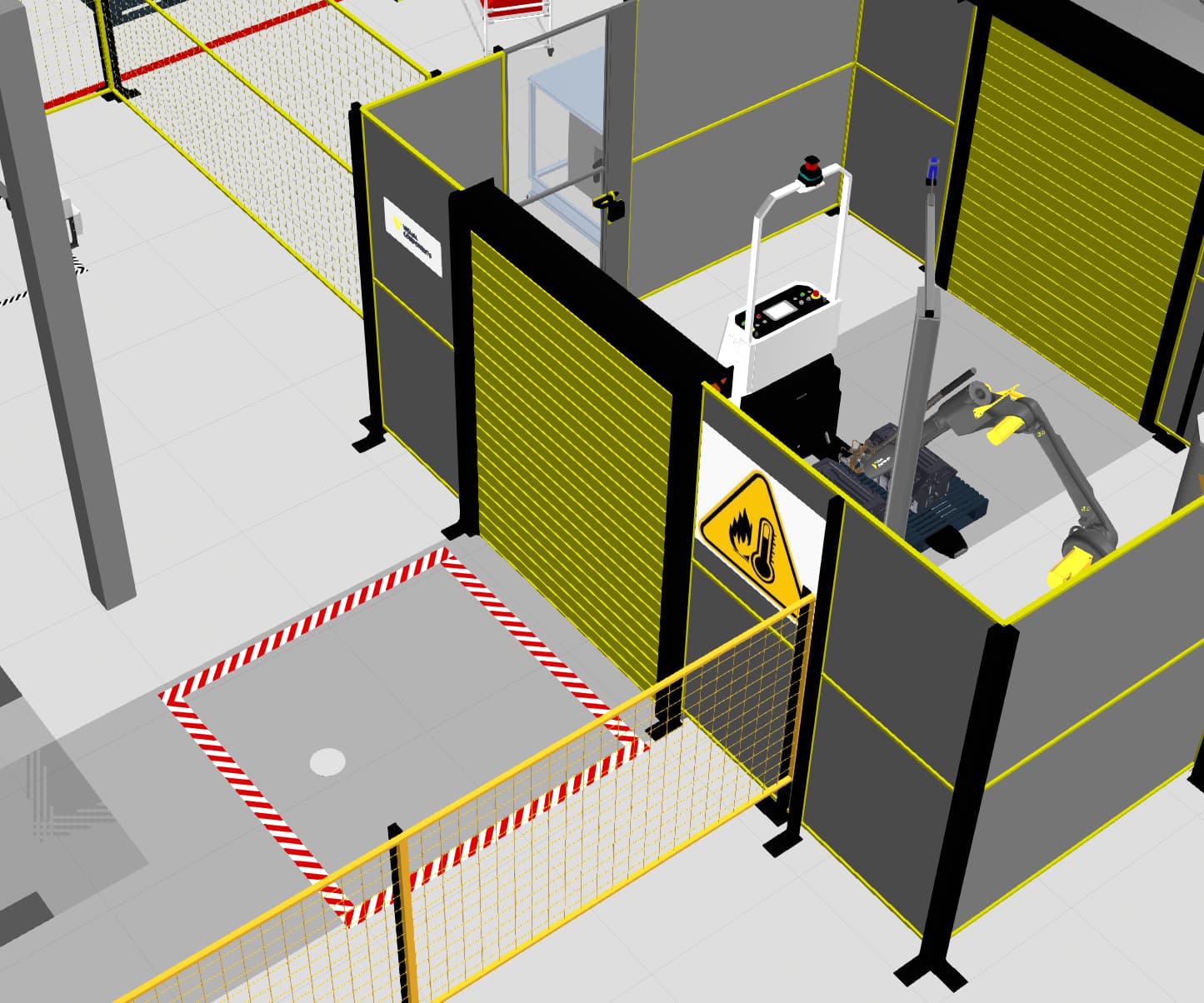

This is a default layout provided by VC.[AMR Theraml Spraying System]
In this layout, when the AMR arrives at the door, the door opens, and the AMR waits until the door is fully opened before proceeding.
How can this kind of behavior be implemented?

image1445×1204 180 KB

2

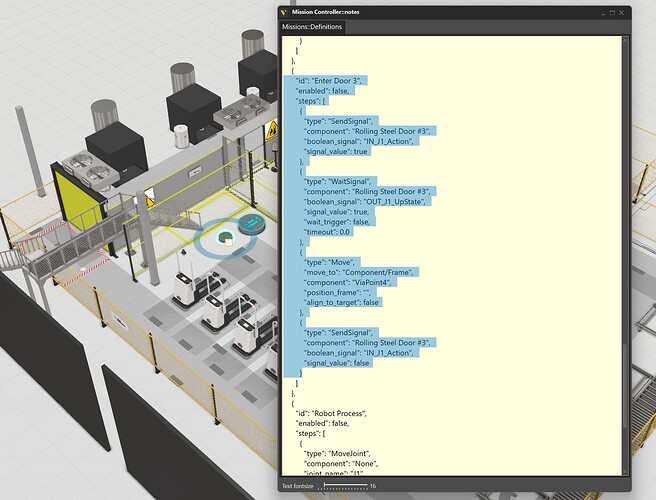

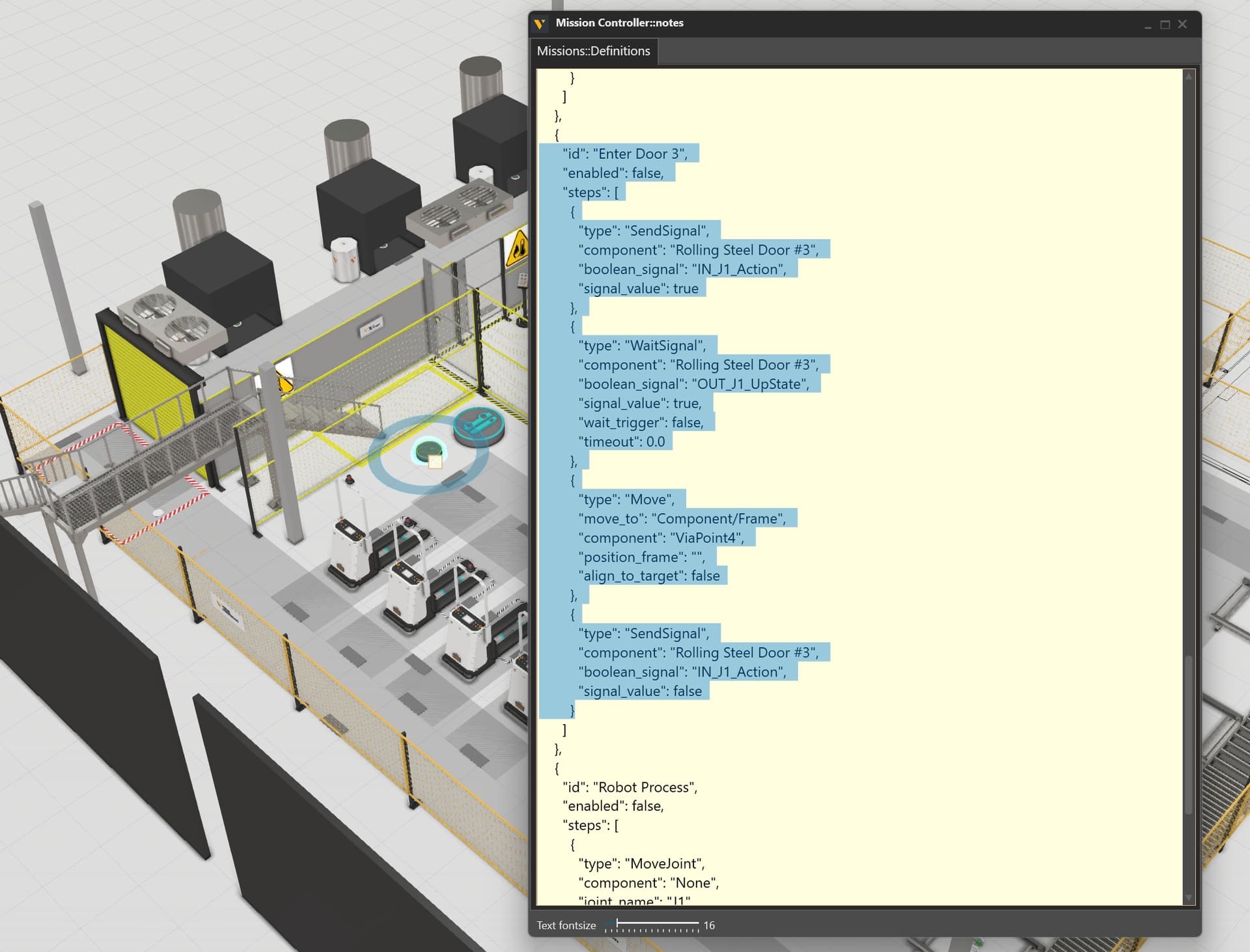

These commands are given in the mission controller:

image1920×1462 182 KB

1 Like
