How to assign a number to a product

Process Modeling
1

Hi,
I would like to be able to assign a random number to the products I create, tried on the assembly level but found out that I can only add a custom property to the parent item, which is fine, but I am not able to assign a value that will follow that parent.

2

hi,

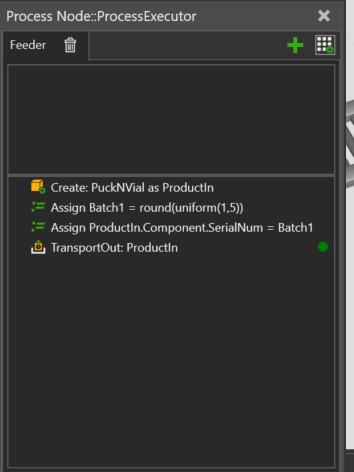

You can use the GetAssembly-statement and return it as a list (source = Assembly Instance).
grafik

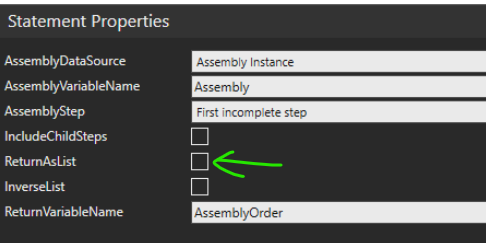

Then you can use the Assign-statement to write the component property for product from this list:

grafik

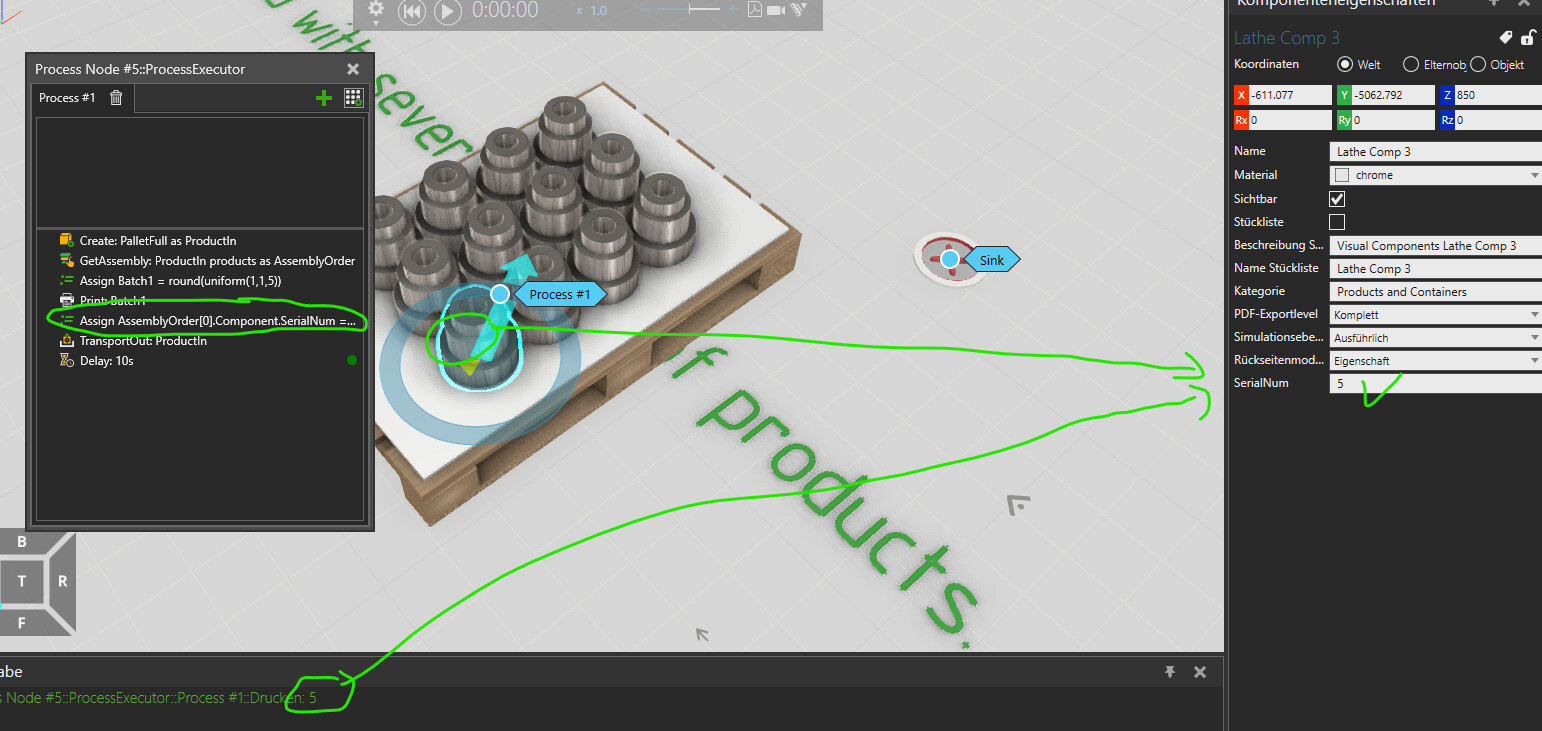

grafik1542×731 220 KB

1 Like
3

:slight_smile: thank you, it works.
