Is it possible to simulate a forklift moving up and down a slanted (inclined) ramp in Visual Components?
What is the correct way to create the ramp and configure the forklift so it follows the slope realistically?
Any Ideas or recommended settings would be appreciated.

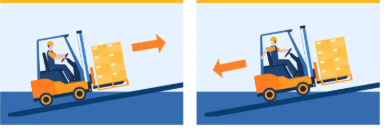

Like This:
Forklift Slanting.vcmx (543.6 KB)
I tried using a pathway and slanting it, but that didn’t seem to affect it. I’m not sure if there is a way to define the floor more generally, but you can mimic this behaviour by moving the process nodes up.
Sloped Forklift.vcmx (2.2 MB)
Hello Everyone, Any method for forklift moving up and down a slanted (inclined) ramp in Visual Components?
You can make it move on a ramp, but it will stay parallel to the 3DWorld’s floor.
I don’t think it would be possible to make it move slanted without putting the whole geometry in a Link with a rotation and changing the Python script to control when it should rotate.
