Dynamic text - machine state

[Gene]

Hi all

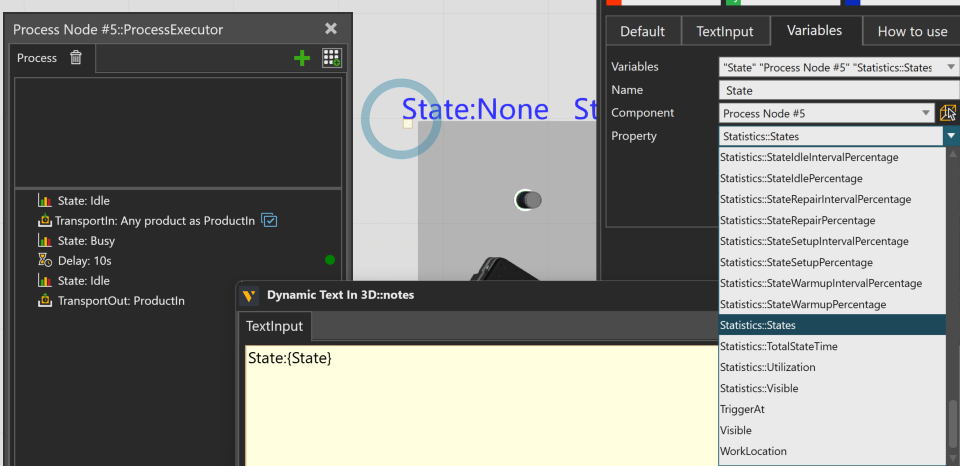

I’d like to show the machine state by dynamic text, I chose Statistics.States, but it shows None in display. What would be the option that I should choose in the drop-down options.

Thanks

[idkfa]

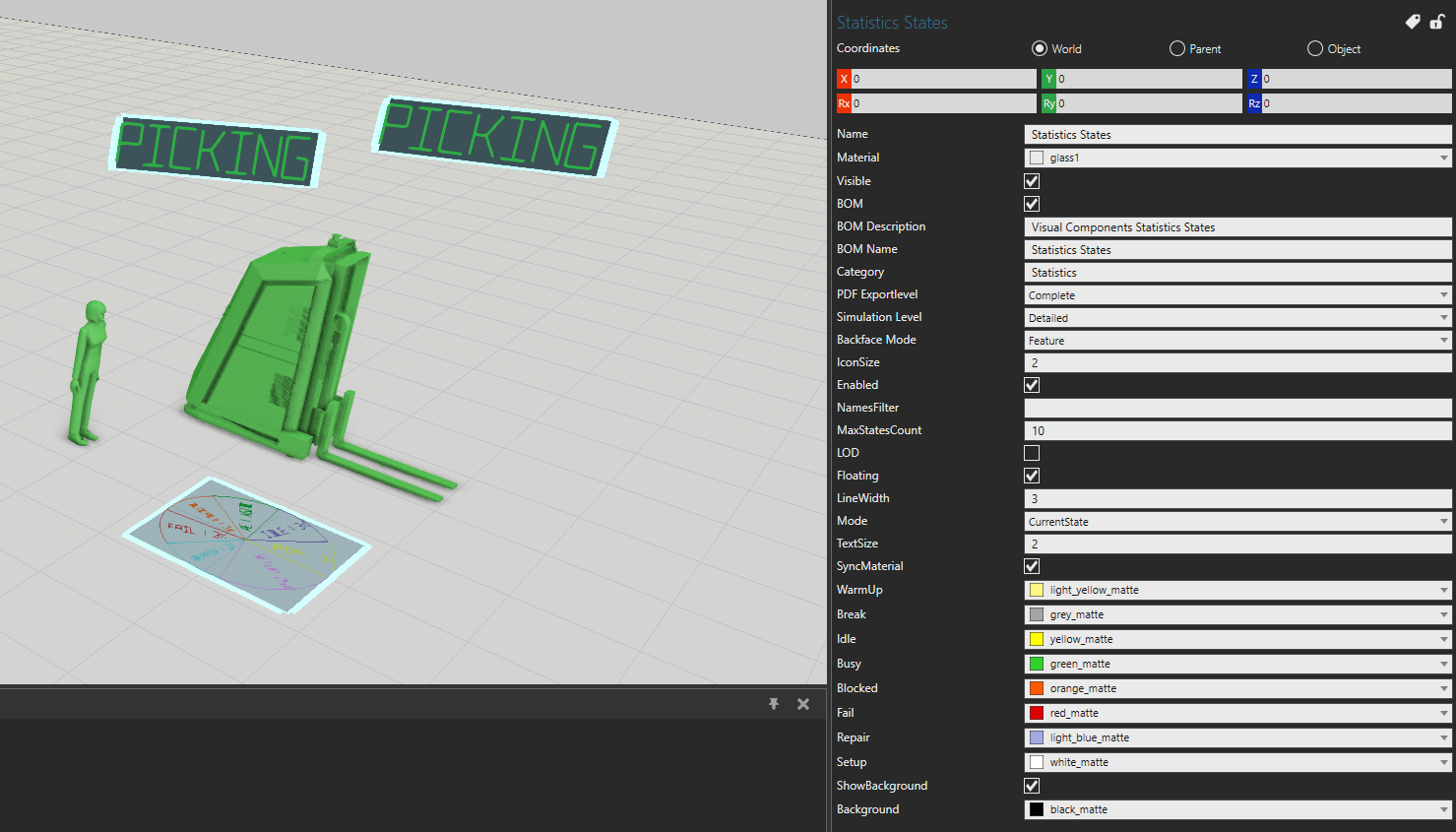

Try ‘Statistics States’ component, set ‘Mode’ to ‘CurrentState’

[Gene]

Thanks, but I only need the display for process node. Plus, I prefer no color change. So, it would be better if there is an option in dynamic text component.

[yujie]

Hi Gene,

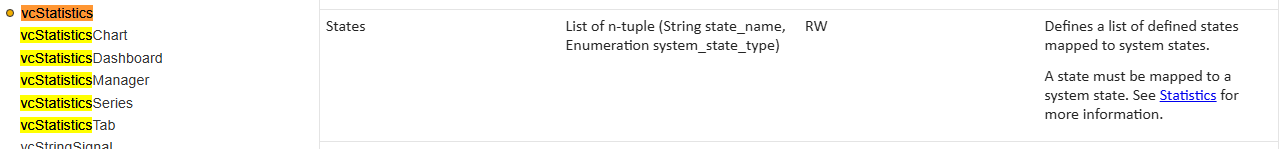

I think this is because Statistics.States returns a type that the getProperty() method can’t handle.

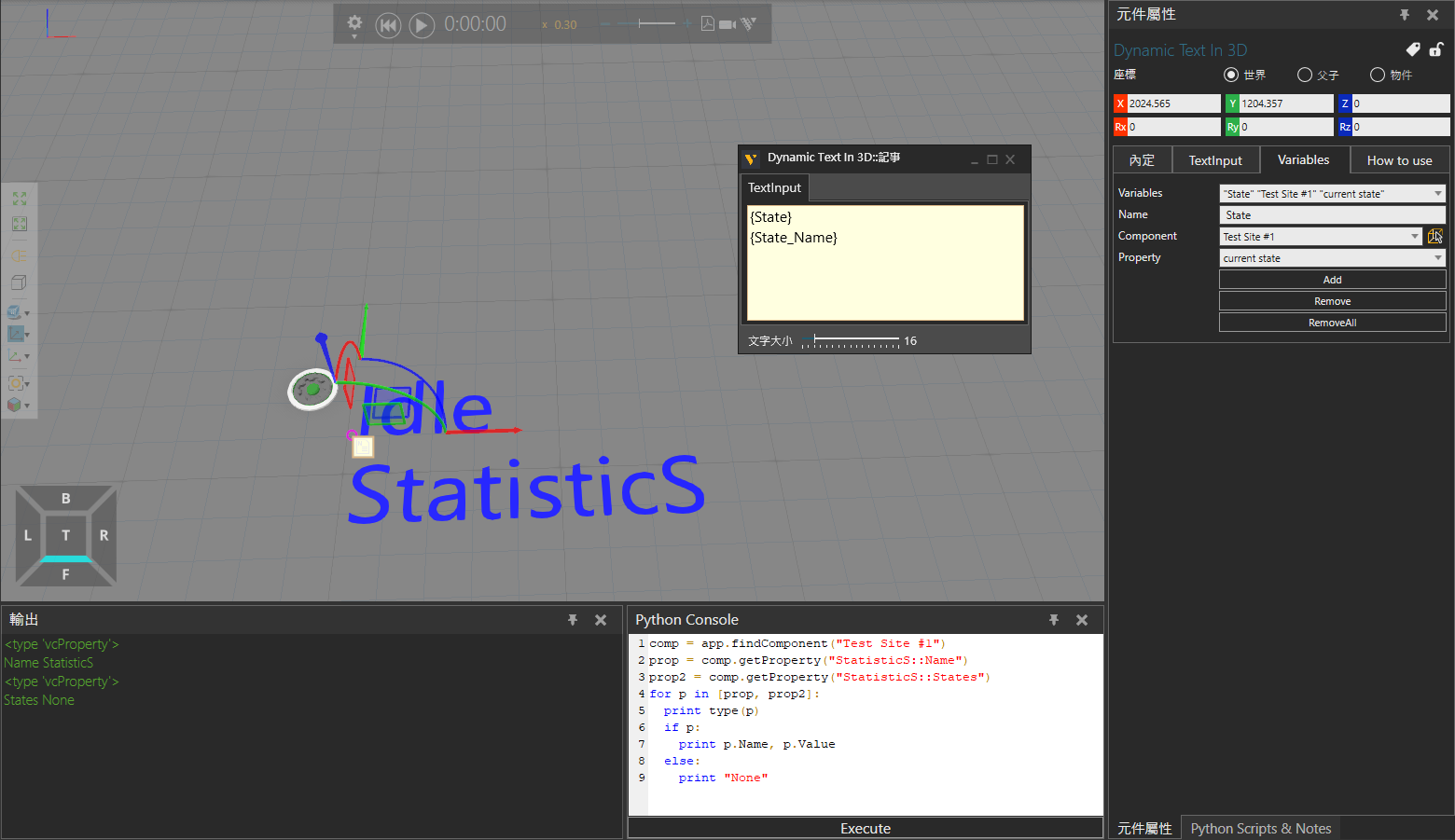

You can add a script to your target component as follows. It will create a string property and link it to the current state of the component’s Statistics behaviour.

Then let the Dynamic Text reference that property.

from vcScript import *

comp = getComponent()
app = getApplication()
sim = getSimulation()

def get_current_state_prop():
  STATE_PROPERTY_NAME = "current state"
  show_stat = comp.getProperty(STATE_PROPERTY_NAME)
  if not show_stat:
    show_stat = comp.createProperty(VC_STRING, STATE_PROPERTY_NAME)
  return show_stat

statistics = comp.findBehavioursByType(VC_STATISTICS)[0]
state = get_current_state_prop()

def OnSimulationUpdate(simtime):
  global state
  state.Value = statistics.State

[Gene]

Hi Yujie

Thanks for the reply, I have 2 questions that I’d to ask you:

1. Where can I add python script?
2. Both the component and Dynamic Text need adding python script?

[yujie]

Just add the script to the target component you want to monitor.
Then use Dynamic Text as usual, but refer to "current state", or rename it if you prefer.

[idkfa]

eCat is updated, Statistics State is added to the options, followed yujie method as a reference, remove delay approach, use OnSimulationUpdate event to update the text.

[Gene]

Guys, it works! thanks.
