HELLO everyone!
Why I cannot move the model by z axis when I trigger on PnP mode?
The PnP mode is used to move components on the same height (so in X and Y direction) and connect them to other components.
If a component is on another height, it can still detect matching interface and position it correctly, on the same height, to connect them.

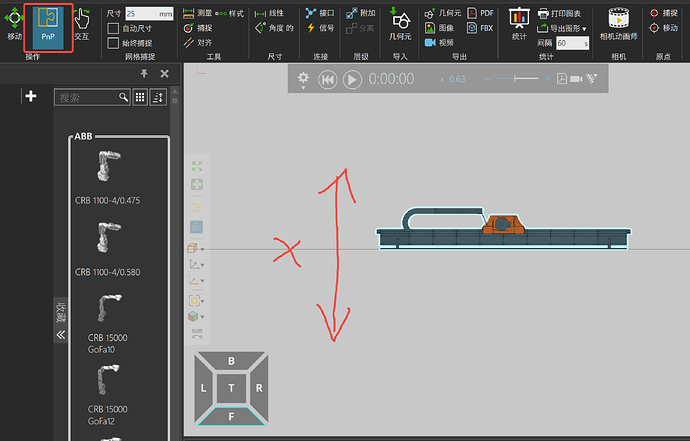

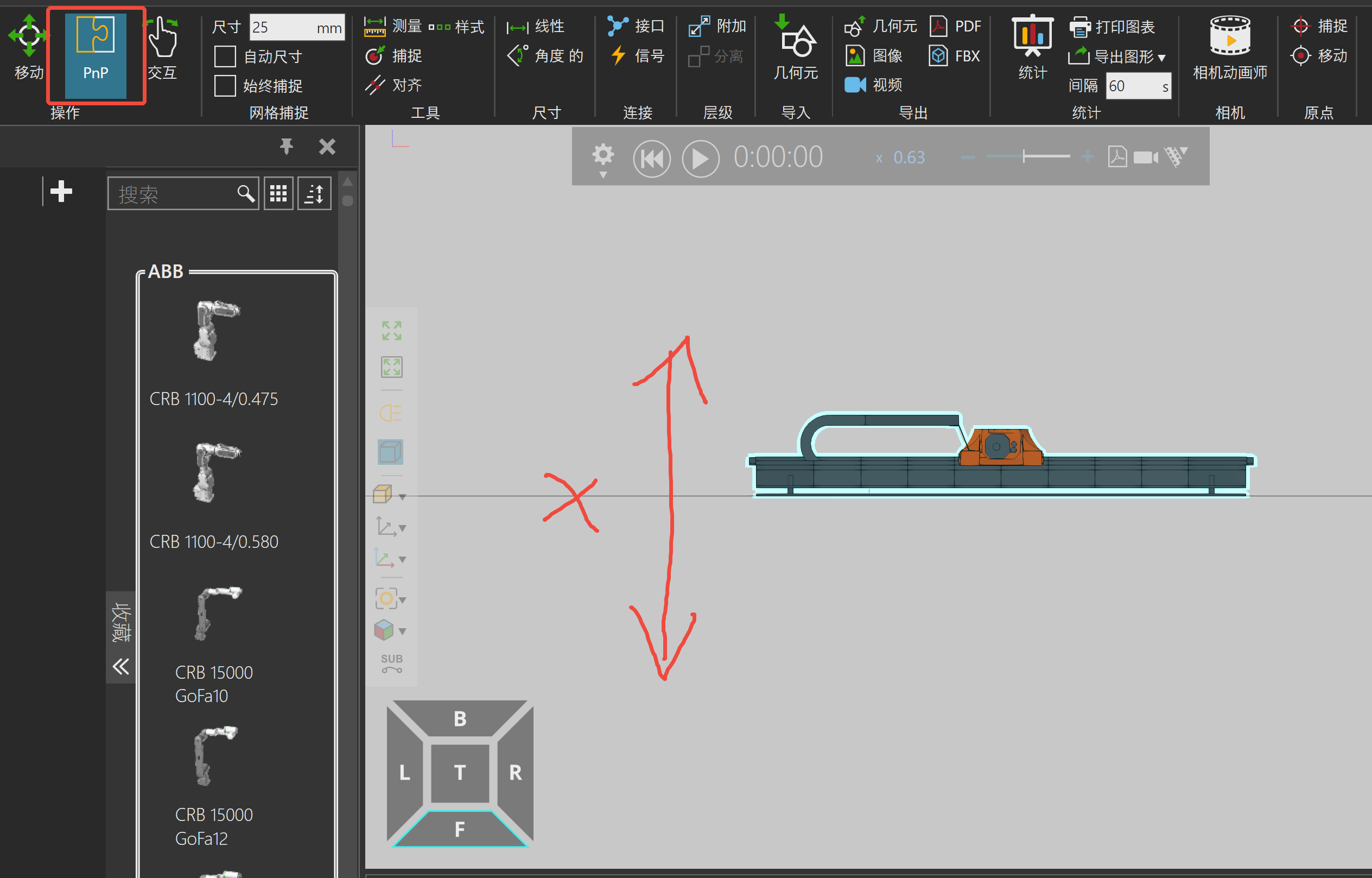

Note that with the orthographic mode activated like you have (see the screenshot), it won’t always detect the matching interface if the heights are different.
Here is a video about PnP: Plug and Play Tool | Visual Components Academy
If you want to move it on the Z-axis, then you should use the Move mode :
1 Like
WOW you told me the key problem, thank you very much!!!
