How to Construct Assembly Steps in a loop

Process Modeling
1

Hi experts,

I need some help :slightly_smiling_face:

It is easy to remove assembly steps in a loop using Remove Statement.

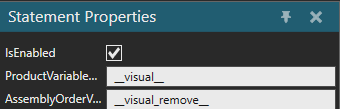

image340×109 2.82 KB

However, is there any way to construct assembly steps in a loop?

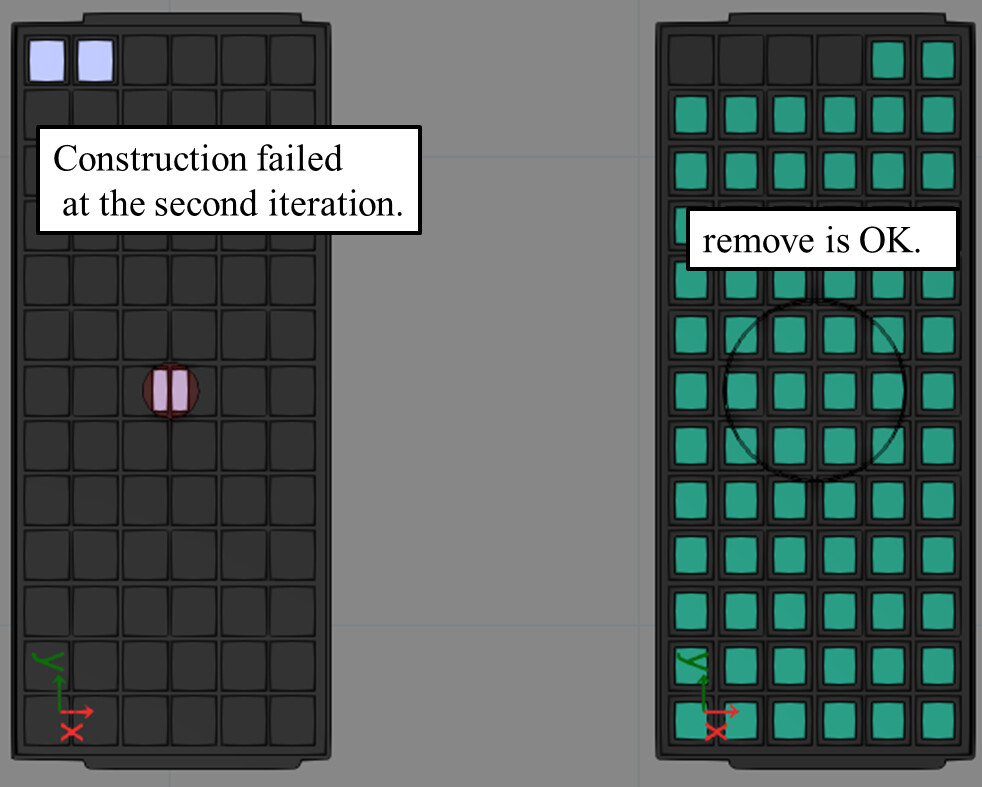

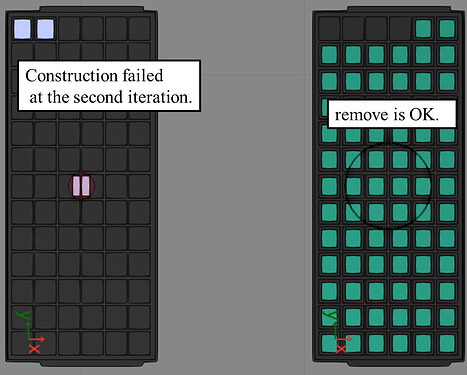

image982×787 105 KB

When I try to build the assembly inside a loop, it raises the following error:

Output #1::ProcessExecutor::Output #1::Construct error:
Expected process variable "__visual_Tray_CAPs__" to have value type "Ref<Product>"
but the type is "List<Ref<Product>>".

Has anyone encountered this issue before, or knows how to correctly construct assembly steps in a loop?

Thank you in advance.

2

Sounds like this same issue, the CAP variable becomes a list automatically.

3

Thank you, Tsy. It works when I add an Assign statement after the Construct statement without checking RemoveAccepted!

Do you know what RemoveAccepted does?
When I check it, the CAP is always assembled from the first step for each loop :thinking:

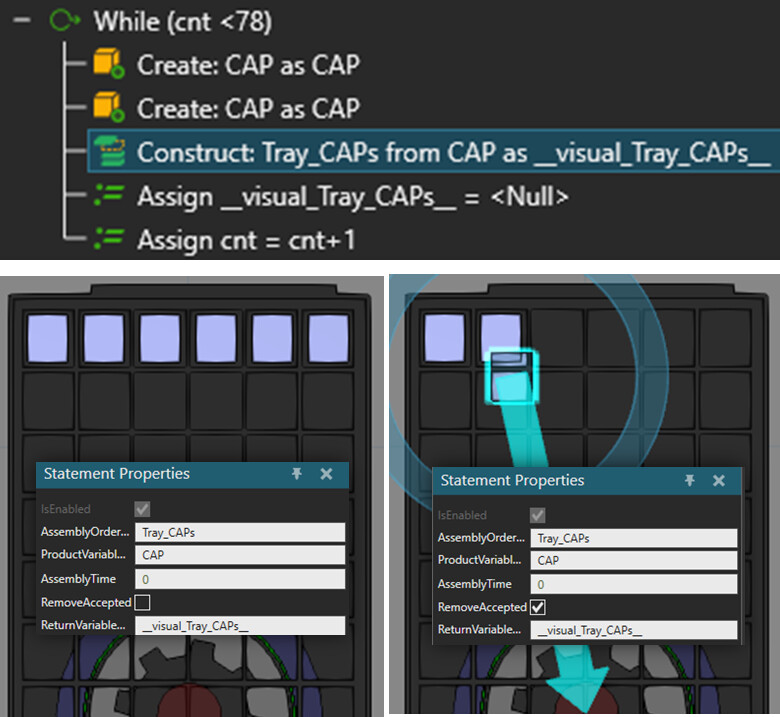

image780×717 113 KB

4

The Construct statement properties are documented here.
Also as far as I know it is not for filling an existing assembly (you need TransportIn for that) but creates a new assembly every time.

5

I may be misinterpreting your design intent, but I think you may be able to achieve this more easily with an assembly:

How to complete an Assembly or Disassembly Task | Visual Components Academy

1 Like
